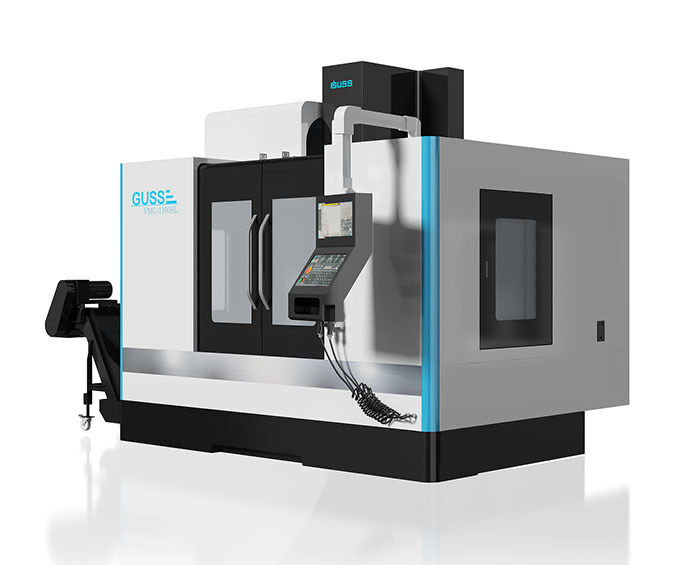

VMC-1160HL Vertical Machining Center VMC Low Vibration High Stability
| Place of Origin | China |
| Brand Name | Guss |
| Model Number | VMC-1160HL |
High Stability vertical machining center vmc
,Low Vibration vertical machining center vmc
,High Stability vertical cnc
Product Features
- Solid Chassis Design
- Lightweight Moving Components
- Honeycomb Structure, Casting Parts
- Integrated Spindle Housing, Low Vibration, High Stability
Technical Specifications
| Item | Unit | VMC-1160HL | |
|---|---|---|---|
| System | CNC System | - | FANUC |
| Rapid Speed | mm/min | 24000/24000/24000 | |
| Cutting Feed Speed | mm/min | 1-10000 | |
| 3-Axis Rated Power | Kw | 3.0/3.0/3.0 [Note①] | |
| 3-Axis Rated Torque | N.m | 20.0/20.0/27.0 [Note①] | |
| Worktable | T-Slot Dimensions | - | 5-18-100 |
| Worktable Dimensions | mm | 1200*600 | |
| Max Worktable Load | Kg | 800 | |
| Travel | 3-Axis Travel | mm | 1100*600*600 |
| Distance from Spindle Nose to Worktable | mm | 120-720 | |
| Spindle | Spindle Power | Kw | 11-15 |
| Max Spindle Speed | rpm | 10000(Belt)/12000(Direct Drive)/15000(Direct Drive) | |
| Spindle Taper | - | BT40 [Note②] | |
| Transmission | Screw Diameter/Pitch | mm | Φ40D12/Φ40D12/Φ40D12 |
| Linear Rail Brand/Type/Width | - | PMI Roller 45mm/Roller 45mm/Roller 45mm [Note③] | |
| Number of Rails/Sliders | Pcs | 2-6/2-4/2-6 | |
| Tool Magazine | Tool Magazine Capacity | Pcs | 24 [Note④] |
| BT/BBT Pull Stud Angle | ° | 45° | |
| Max Tool Diameter | mm | Φ80(Full Magazine)/Φ150(Empty Adjacent Tool) | |
| Max Tool Length/Weight | mm/kg | 300/8 | |
| Tool Change Time | s | 1.3 | |
| Partial Configuration | Automatic Chip Removal | - | Rear Flushing |
| Automatic Lubrication System | - | Thin Oil Lubrication | |
| Electrical Cabinet Cooling | - | Heat Exchanger | |
| Accuracy | Positioning Accuracy (Full Travel) | mm | 0.008 |
| Repeat Positioning Accuracy (Full Travel) | mm | 0.005 | |
| Others | Air Supply Flow/Pressure | - | Flow 150(L/min)/Pressure 6Bar |
| Total Power | Kw | 25 | |
| Machine Weight | Kg | 6500 | |
| Machine Overall Dimensions (L*W*H) | mm | 3100*2500*2800 [Note⑤] | |
|
Standard Configuration: Umbrella-shaped servo tool magazine, rear-flush chip removal, spindle oil cooler, water gun, air gun, spindle air curtain, spindle ring spray, centralized lubrication, air source treatment, oil-water separation, heat exchanger Optional Configuration: Mitsubishi/Syntec system, hollow screw, chain-type chip removal, grease lubrication, electrical cabinet air conditioner, 4-axis, 5-axis, column heightening, tool internal cooling, fixtures, clamps ※ The product appearance and configuration are subject to improvement with technological development, but will not be lower than current technical requirements. No separate notification will be given; the specific details shall be based on the technical agreement at the time of purchase. Note ①: The 3-axis power and torque are based on FANUC. For detailed information on Mitsubishi, Syntec and other systems, please consult the corresponding account manager. Note ②: Optional BT50-155 spindle; Note ③: In case of stock shortage, equivalent specifications (such as HIWIN, Rexroth, THK) will be used as substitutes. No separate notification will be given; Note ④: Optional 30-tool capacity for the tool magazine; Note ⑤: This dimension does not include the water tank (the width of the rear-flush water tank increases by 550mm) or the chain (the length of the chain increases by 1000mm). Select one option based on the actual configuration. |
