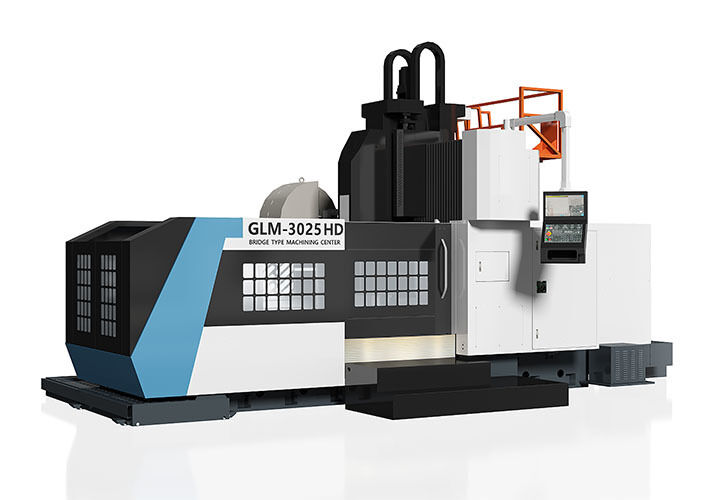

GLM-3025HD Gantry Machining Centers 12000mm/Min 10000mm/Min 3 Axis
| Place of Origin | China |
| Brand Name | Guss |
| Model Number | GLM-3025HD |
10000mm/Min Gantry Machining Centers
,12000mm/Min Gantry Machining Centers
,3 Axis cnc gantry machine
- Z-axis utilizes sliding wedge structure for superior rigidity compared to traditional hard rails
- Spindle features imported carbon fiber coupling with minimal torque loss and high transmission efficiency
- Optimized low center of gravity design for enhanced chassis stability
| Item | Unit | GLM-3025HD | |
| System | Control System | - | FANUC |
| Rapid Traverse Speed | mm/min | 12000/12000/10000 | |
| Cutting Feed Speed | mm/min | 1-8000 | |
| 3-Axis Rated Power | Kw | 6.0/7.0/7.0 [Note①] | |
| 3-Axis Rated Torque | Nm | 38.0/30.0/30.0 [Note①] | |
| Worktable | T-Slot Size | - | 9-22-200 |
| Worktable Size | mm | 3200*2200 | |
| Doorway Width | mm | 2550 | |
| Max Worktable Load | Kg | 12000 | |
| Stroke | 3-Axis Stroke | mm | 3200*2500*1000 |
| Spindle Nose to Worktable Distance | mm | 150-1150 | |
| Spindle | Spindle Power | Kw | 22-26 |
| Max Spindle Speed | rpm | 6000 | |
| Spindle Taper Hole | - | BT50 | |
| Transmission | Screw Diameter/Pitch | mm | Φ63D16/Φ63D16/Φ50D10 |
| Linear Rail Brand/Type/Width | - | PMI Roller 55mm/55mm (Square Ram) [Note②] | |
| Guide Rail Qty/Slider Qty | Pcs | 2-12/2-5 (Square Ram) | |
| Tool Magazine | Tool Capacity | Pcs | 24 [Note③] |
| Drawbar Angle | ° | 45° | |
| Max Tool Diameter | mm | Φ110 (Full Load)/Φ210 (Empty Adjacent Tool) | |
| Max Tool Length/Weight | mm/kg | 350/15 | |
| Tool Change Time | s | 2.2 | |
| Partial Configuration | Auto Chip Removal | - | Double Screw + Chain Type |
| Auto Lubrication System | - | Thin Oil Lubrication | |
| Cabinet Cooling | - | Heat Exchanger | |
| Accuracy | Positioning Accuracy (300mm) | mm | 0.008/0.008/0.012 |
| Repeat Positioning Accuracy (300mm) | mm | 0.006/0.006/0.008 | |
| Others | Air Flow/Pressure | - | Flow 150(L/min)/Pressure 6(Bar) |
| Total Power | Kw | 50 | |
| Machine Weight | Kg | 46000 | |
| Machine Overall Size (L*W*H) | mm | 10800*4900*5200 | |
Mechanical Tool Magazine, Double Screw + Chain-Type Chip Removal, Spindle Oil Cooler, Water Gun, Air Gun, Spindle Shroud, Spindle Ring, Centralized Lubrication, Air Source Treatment, Oil-Water Separator, Heat Exchanger, Counterbalance Cylinder
Mitsubishi/New Generation System, Hollow Screw, Cabinet Air Conditioner, 4-Axis/5-Axis, Column Reinforcement, Full Enclosure, Manual/Auto Rotary Head, Side Head Magazine, Internal Tool Cooling, Fixtures, Clamps
• Product appearance and configuration are subject to technical updates (not lower than current specifications), without prior notice. The actual purchase technical agreement shall prevail.
• There are many gantry machine models; the above is only part of our company’s models. For unlisted specifications, please consult the official website or the corresponding customer manager.
Note①: 3-axis power/torque is based on FANUC. For details of Mitsubishi/New Generation systems, please consult the corresponding customer manager.
Note②: For guide rails, HWIN/Rexroth/THK (same specifications) may be substituted, without prior notice.
Note③: Tool magazine capacity can be optionally 30T.
