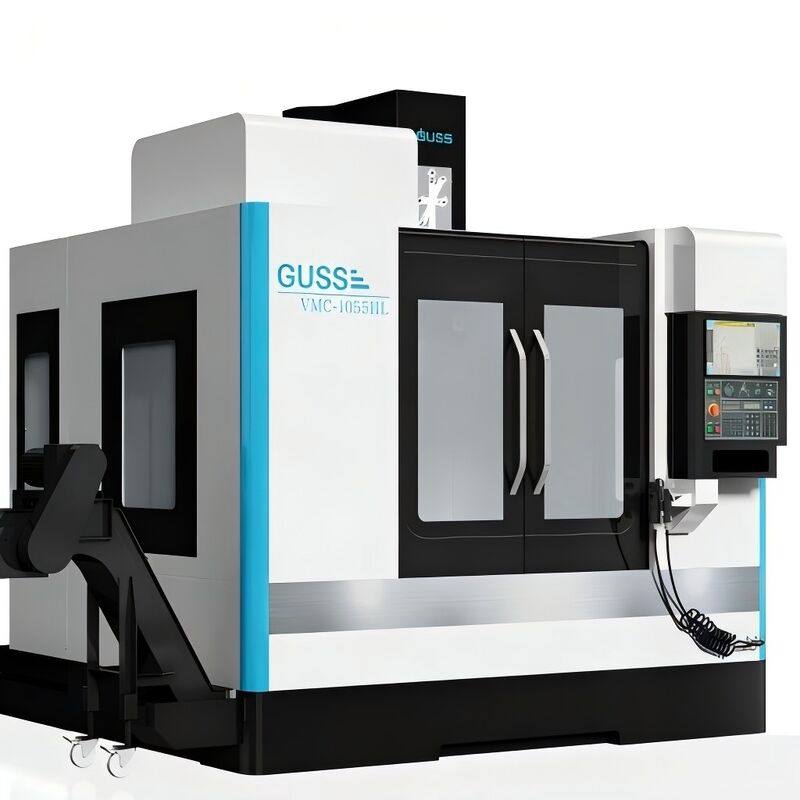

VMC-1055HL Machining Center Vertical 1-10000mm/Min Cutting Feed Speed
| Place of Origin | China |
| Brand Name | Guss |
| Model Number | VMC-1055HL |
1mm/Min machining center vertical
,10000mm/Min machining center vertical
,3 Axis vertical cnc machine
- Nationally recognized product with proven reliability
- Classic, time-tested structural design
- Precise cutting capabilities with heavy load stability
- Beginner-friendly operation for new users
- Scalable expansion options with cost efficiency
Technical Specifications
| Item | Unit | VMC-1055HL | |
|---|---|---|---|
| System | CNC System | - | FANUC |
| Rapid Speed | mm/min | 36000/36000/36000 | |
| Cutting Feed Speed | mm/min | 1-10000 | |
| 3-Axis Rated Power | Kw | 3.0/3.0/3.0 [Note①] | |
| 3-Axis Rated Torque | N.m | 20.0/20.0/20.0 [Note①] | |
| Worktable | T-Slot Dimensions | - | 5-18-90 |
| Worktable Dimensions | mm | 1200×550 | |
| Max Worktable Load | Kg | 800 | |
| Travel | 3-Axis Travel | mm | 1000×550×550 |
| Distance from Spindle Nose to Worktable | mm | 120-670 | |
| Spindle | Spindle Power | Kw | 7.5-11 |
| Max Spindle Speed | rpm | 10000(Belt)/12000(Direct Drive)/15000(Direct Drive) | |
| Spindle Taper | - | BT40 [Note②] | |
| Transmission | Screw Diameter/Pitch | mm | Φ40D12/Φ40D12/Φ40D12 |
| Linear Rail Brand/Type/Width | - | PMI Roller 45mm/Roller 45mm/Roller 45mm [Note③] | |
| Number of Rails/Sliders | Pcs | 2-6/2-4/2-6 | |
| Tool Magazine | Tool Magazine Capacity | Pcs | 24 [Note④] |
| BT/BBT Pull Stud Angle | ° | 45° | |
| Max Tool Diameter | mm | Φ80(Full Magazine)/Φ150(Empty Adjacent Tool) | |
| Max Tool Length/Weight | mm/kg | 300/8 | |
| Tool Change Time | s | 1.3 | |
| Partial Configuration | Automatic Chip Removal | - | Rear Flushing |
| Automatic Lubrication System | - | Thin Oil Lubrication | |
| Electrical Cabinet Cooling | - | Heat Exchanger | |
| Accuracy | Positioning Accuracy (Full Travel) | mm | 0.008 |
| Repeat Positioning Accuracy (Full Travel) | mm | 0.005 | |
| Others | Air Supply Flow/Pressure | - | Flow 150(L/min)/Pressure 6Bar |
| Total Power | Kw | 20 | |
| Machine Weight | Kg | 5800 | |
| Machine Overall Dimensions (L×W×H) | mm | 2600×2350×2800 [Note⑤] | |
Standard Configuration:
Umbrella-shaped servo tool magazine,Rear-flush chip removal,Spindle oil cooler,Water gun,Air gun,Spindle air curtain,Spindle ring spray,Centralized lubrication,Air source treatment,Oil-water separation,Heat exchanger
Optional Configuration:
Mitsubishi/Syntec system,Hollow screw,Chain-type chip removal,Grease lubrication,Electrical cabinet air conditioner,4-axis,5-axis,Column heightening,Tool internal cooling,FixturesClamps
※ The product’s appearance and configuration will be updated with technological development (but will not be lower than current technical requirements). No separate notification will be given; specific details shall be subject to the technical agreement at the time of purchase.
Note ①: The 3-axis power and torque are based on FANUC. For detailed information on Mitsubishi, Syntec and other systems, please consult the corresponding account manager.
Note ②: Optional BT50-155 spindle;
Note ③: In case of stock shortage, equivalent specifications (e.g., HIWIN, Rexroth, THK) will be used as substitutes. No separate notification will be given;
Note ④: Optional 30-tool capacity for the tool magazine;
Note ⑤:This dimension does not include the water tank (the width of the rear-flush water tank increases by 550mm) or the chain (the length of the chain increases by 1000mm). Select one option based on the actual configuration.
