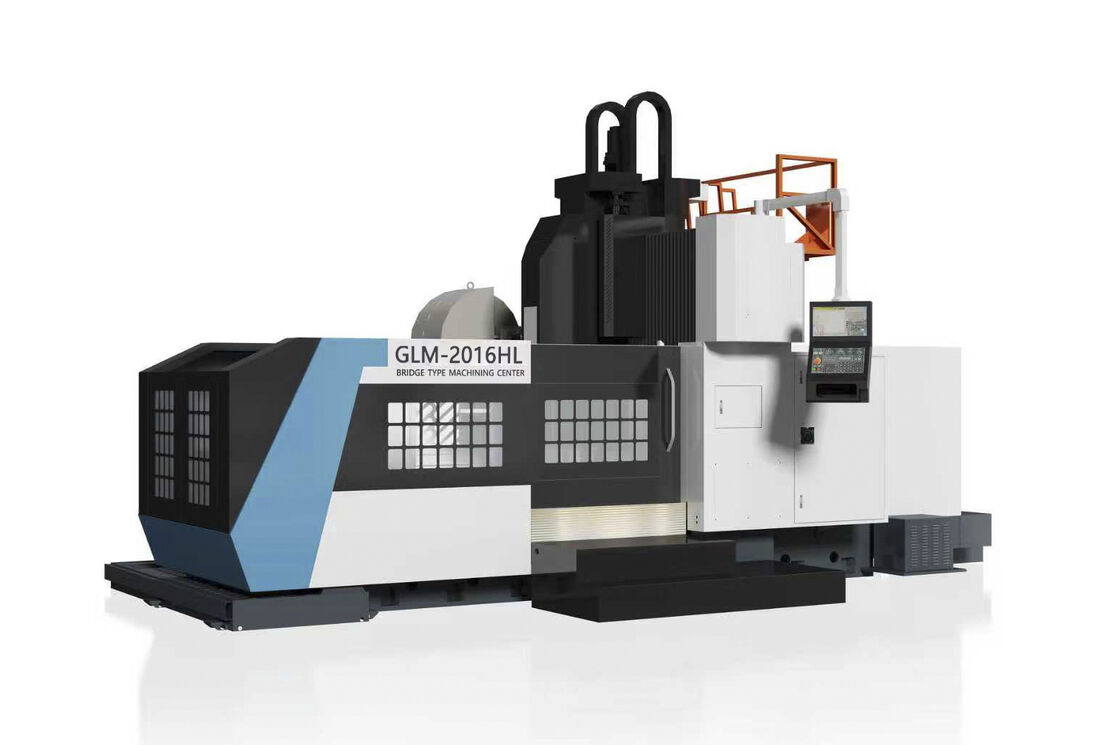

GLM-2016HL Gantry Machining Center
Product Features
- Classic Gantry Bridge Structure, Stable and Durable
- Three Axes Adopt Roller Guideways, High Precision, Low Wear, and Low Later Maintenance Cost
- V-Type Base Design, Higher Rigidity and Better Shock Resistance
- Z-Axis Four-Guide-Rail Design, Stronger Toughness
Technical Specifications
| Item | Unit | GLM-2016HL | |
| System | CNC System | - | FANUC |
| Rapid Traverse Speed | mm/min | 15000/15000/15000 | |
| Cutting Feed Speed | mm/min | 1-8000 | |
| 3-Axis Rated Power | Kw | 3.0/3.0/3.0 [Note①] | |
| 3-Axis Rated Torque | N.m | 36.0/36.0/36.0 [Note①] | |
| Worktable | T-Slot Size | - | 9-22-150 |
| Worktable Size | mm | 2000*1400 | |
| Doorway Width | mm | 1630 | |
| Max Worktable Load | Kg | 4500 | |
| Stroke | 3-Axis Stroke | mm | 2000*1600*800 |
| Distance from Spindle Nose to Worktable Surface | mm | 150-950 | |
| Spindle | Spindle Power | Kw | 15-18.5 (Wide Range) |
| Max Spindle Speed | rpm | 6000 (Belt)/8000 (Belt)/10000 (Direct Drive) | |
| Spindle Taper | - | BT50 [Note②] | |
| Transmission | Screw Diameter/Pitch | mm | Φ63D10/Φ50D10/Φ50D10 |
| Linear Rail Brand/Type/Width | - | PMI Roller 45mm/45mm/45mm [Note③④⑤] | |
| Guide Rail Qty/Slider Qty | Pcs | 2-8/2-5/4-10 | |
| Tool Magazine | Tool Magazine Capacity | Pcs | 24 [Note⑥] |
| Pull Stud Angle | ° | 45° | |
| Max Tool Diameter | mm | Φ110 (Full Load)/Φ210 (Empty Adjacent Tool) | |
| Max Tool Length/Weight | mm/kg | 350/15 | |
| Tool Change Time | s | 2.2 | |
| Partial Configuration | Automatic Chip Removal | - | Rear Flush |
| Automatic Lubrication System | - | Thin Oil Lubrication | |
| Electrical Cabinet Heat Dissipation | - | Heat Exchanger | |
| Accuracy | Positioning Accuracy (300mm) | mm | 0.008/0.008/0.010 |
| Repeat Positioning Accuracy (300mm) | mm | 0.006/0.006/0.008 | |
| Others | Air Supply Flow/Pressure | - | Flow 150(L/min) / Pressure 6(Bar) |
| Total Power | Kw | 30 | |
| Machine Weight | Kg | 20000 | |
| Machine Overall Dimensions (L*W*H) | mm | 5600*3200*3500 | |
Standard Configuration:
Operating handwheel, double screw + chain-type chip removal, spindle oil cooler, water gun, air gun, spindle air curtain, spindle ring spray, centralized lubrication, air source treatment, oil-water separation, heat exchanger, knife library balance
Optional Configuration:
Mitsubishi/New Generation System, hollow screw, electrical cabinet air conditioning, 4-axis, 5-axis, column heightening, full gear spindle, manual/automatic side milling head, side milling head library, internal tool cooling, tooling, fixtures
※ The appearance and configuration of the product will be improved with technological development (but not lower than current technical requirements), and no separate notification will be given. The specific technical agreement at the time of purchase shall prevail;
※ There are many types of gantry models. The above are some models of our company. For unlisted specifications, please visit the official website or consult the corresponding customer manager;
Note ①: The 3-axis power and torque are based on the FANUC system. For detailed data of Mitsubishi and New Generation systems, please consult the corresponding customer manager;
Note ②: Optional BT50-190 spindle;
Note ③: If the model is out of stock, HIWIN, Rexroth, THK of the same specification will be used as substitutes, and no separate notification will be given;
Note ④: The X-axis and Y-axis can be equipped with 55mm linear rail width;
Note ⑤: The Z-axis can be equipped with a rack;
Note ⑥: The tool magazine capacity can be equipped with 30T;
