GLM-4025HL Gantry Machining Centers High Precision Heavy Duty
| Place of Origin | China |
| Brand Name | Guss |
| Model Number | GLM-4025HL |
High Precision Gantry Machining Centers
,Heavy Duty Gantry Machining Centers
,3 Axis cnc gantry machine

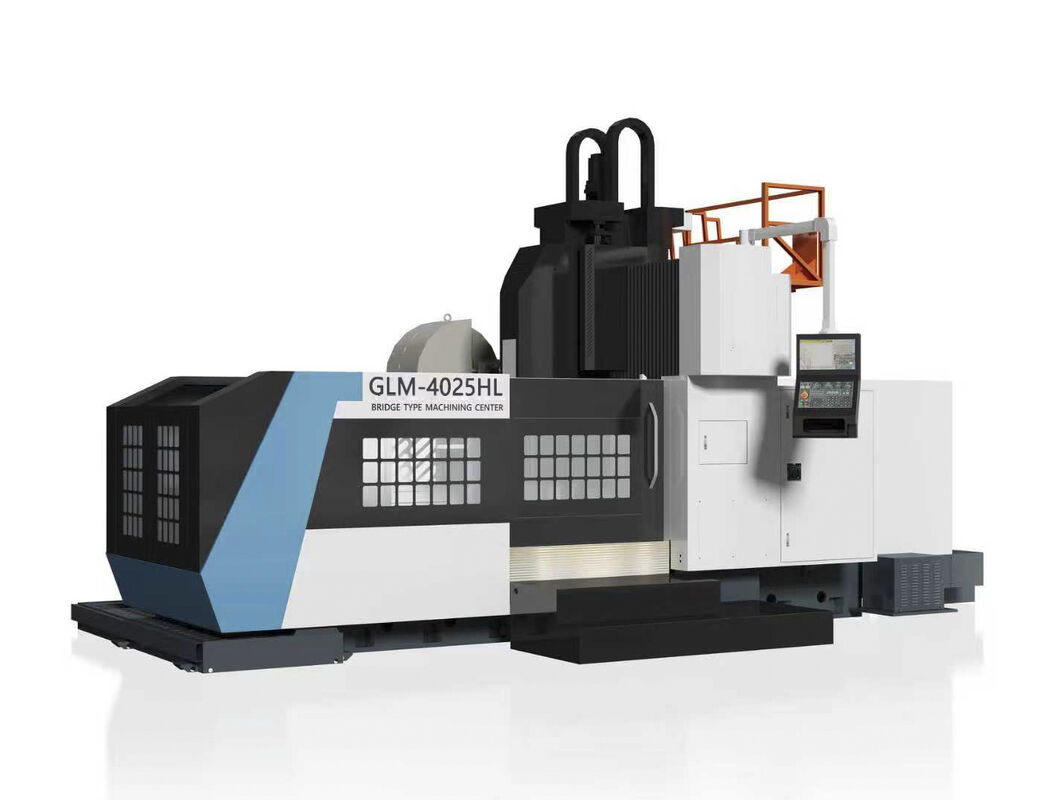

GLM-4025HL Gantry Machining Center
Product Features
- Widened Base, Lowered Center of Gravity
- Y-Axis Rail Top-Mounted, Stable Structure
- Z-Axis Four-Guide-Rail Design, Stronger Toughness
Technical Specifications
| Item | Unit | GLM-4025HL | |
| System | Control System | - | FANUC |
| Rapid Traverse Speed | mm/min | 12000/12000/12000 | |
| Cutting Feed Speed | mm/min | 1-10000 | |
| 3-Axis Rated Power | Kw | 6.0/7.0/7.0 [Note①] | |
| 3-Axis Rated Torque | N.m | 38.0/30.0/30.0 [Note①] | |
| Worktable | T-Slot Specs | - | 9-28-180 |
| Worktable Size | mm | 4000*2200 | |
| Doorway Width | mm | 2550 | |
| Max Worktable Load | Kg | 16000 | |
| Stroke | 3-Axis Stroke | mm | 4200*2500*1000 |
| Spindle Nose to Worktable Distance | mm | 250-1250 | |
| Spindle | Spindle Power | Kw | 22-26 |
| Max Spindle Speed | rpm | 6000 (Belt)/8000 (Belt)/10000 (Direct Drive) | |
| Spindle Taper Hole | - | BT50 | |
| Transmission | Screw Diameter/Pitch | mm | Φ80D16/Φ63D16/Φ50D10 |
| Linear Rail Brand/Type/Width | - | PMI Roller 55mm/55mm (Rectangular rail ) [Note②] | |
| Guide Rail Qty/Slider Qty | Pcs | 2-16/2-5 (Rack) | |
| Tool Magazine | Tool Capacity | Pcs | 24 [Note④] |
| Drawbar Angle | ° | 45° | |
| Max Tool Diameter | mm | Φ110 (Full)/Φ210 (Empty Adjacent Tool) | |
| Max Tool Length/Weight | mm/kg | 350/15 | |
| Tool Change Time | s | 2.2 | |
| Configuration | Auto Chip Removal | - | Rear Flush |
| Auto Lubrication System | - | Thin Oil Lubrication | |
| Cabinet Cooling | - | Heat Exchanger | |
| Accuracy | Positioning Accuracy (300mm) | mm | 0.008/0.008/0.012 |
| Repeat Positioning Accuracy (300mm) | mm | 0.006/0.006/0.008 | |
| Others | Air Flow/Pressure | - | Flow 150(L/min)/Pressure 6(bar) |
| Total Power | Kw | 30 | |
| Machine Weight | Kg | 38000 | |
| Machine Overall Size (L*W*H) | mm | 12800*4900*4500 | |
Standard Configuration:
Double-row + Chain-type Tool Magazine, Spindle Oil Cooler, Water Gun, Air Gun, Spindle Shroud, Spindle Ring, Centralized Lubrication, Air Source Treatment, Oil-Water Separator, Heat Exchanger, Counterbalance Cylinder
Optional Configuration:
Mitsubishi/New Generation System, Hollow Spindle, Cabinet Air Conditioner, 4-Axis/5-Axis, Column Reinforcement, Full Enclosure, Manual/Auto Rotary Head, Side Head Magazine, Internal Tool Cooling, Fixtures, Clamps
*Remarks:
Product appearance and configuration are subject to technical updates (not lower than current specifications), without prior notice. The actual purchase technical agreement shall prevail.
There are many gantry machine models; the above is only part of our company’s models. For unlisted specifications, please consult the official website or the corresponding customer manager.
Note①: 3-axis power/torque is based on FANUC. For details of Mitsubishi/New Generation systems, please consult the corresponding customer manager.
Note②: For guide rails, HWIN/Rexroth/THK (same specifications) may be substituted, without prior notice.
Note③: Z-axis can be optionally motorized.
Note④: Tool magazine capacity can be optionally 30T.
