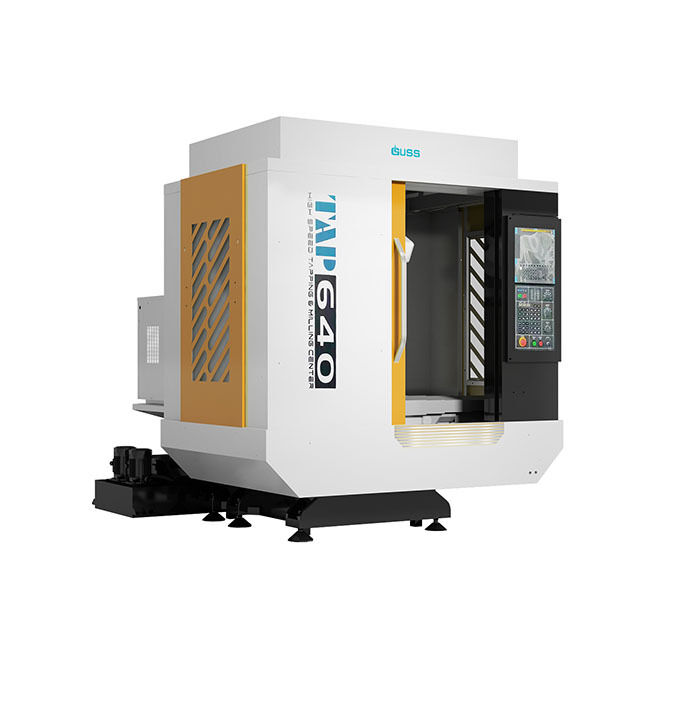

TAP-640 Drilling And Tapping Center 48000mm/Min Rapid Speed
| Place of Origin | China |
| Brand Name | Guss |
| Model Number | TAP-640 |
High speed Drilling And Tapping Center
,48000mm/Min Drilling And Tapping Center
,High speed drilling tapping center
TAP-640 Drilling and Tapping Machining Center
- High-speed spindle movement for highly effective processing
- Servo fast tool change system
- Silent guide rail with low friction and high sensitivity
- Large span herringbone columns resist high acceleration and deceleration impact
- Maximum tapping speed of 5000rpm for greatly improved efficiency
| Item | Unit | TAP-640 | |
|---|---|---|---|
| System | CNC System | - | FANUC |
| Rapid Speed | mm/min | 48000/48000/48000 | |
| Cutting Feed Rate | mm/min | 1-10000 | |
| 3-Axis Rated Power | Kw | 2.5/2.7/2.7 [Note①] | |
| 3-Axis Rated Torque | N.m | 8.0/12.0/12.0 [Note①] | |
| Worktable | T-Slot Size | - | 3-14-125 |
| Worktable Size | mm | 700×420 | |
| Max Worktable Load | Kg | 300 | |
| Stroke | 3-Axis Stroke | mm | 600×400×350 |
| Spindle Nose to Worktable Distance | mm | 130-460 | |
| Spindle | Spindle Power | Kw | 3.7-5.5 |
| Max Spindle Speed | rpm | 20000 | |
| Spindle Taper | - | BT30 | |
| Transmission | Screw Diameter/Pitch | mm | Φ28D16/Φ28D16/Φ32D16 |
| Linear Rail Brand/Type/Width | - | PMI Ball 30mm/PMI Ball 30mm/PMI Roller 30mm [Note②] | |
| Guideway Quantity/Slider Quantity | Pcs | 2-4/2-4/2-4 | |
| Tool Magazine | Tool Capacity (Pocket) | Pcs | 21 |
| BT1/BBT Pull Stud Angle | ° | 45° | |
| Max Tool Diameter | mm | Φ60(Full Magazine)/Φ80(Empty Adjacent Tool) | |
| Max Tool Length/Weight | mm/kg | 200/2 | |
| Tool Change Time (Adjacent/Distant) | s | 0.35/1.3 | |
| Partial Configuration | Automatic Chip Removal | - | Rear Flush |
| Automatic Lubrication System | - | Thin Oil Lubrication | |
| Electrical Cabinet Cooling | - | Heat Exchanger | |
| Accuracy | Positioning Accuracy (Full Stroke) | mm | 0.008 |
| Repeat Positioning Accuracy (Full Stroke) | mm | 0.005 | |
| Others | Air Flow/Pressure | - | Flow 150L/(min)/Pressure(6Bar) |
| Total Power | Kw | 20 | |
| Machine Weight | Kg | 4000 | |
| Machine Overall Dimensions (L×W×H) | mm | 1900×2100×2200/1900×2320×2200 (with water tank) | |
Umbrella-shaped servo tool magazine, rear-flush chip removal, spindle oil cooler, water gun, air gun, spindle air curtain, spindle ring spray, centralized lubrication, air source treatment, oil-water separation, heat exchanger
Mitsubishi/Syntec system, direct-drive 24000rpm spindle, hollow screw, grease lubrication, electrical cabinet air conditioner, 4-axis, 5-axis, column heightening, tool internal cooling, fixtures, clamps
※ The product appearance and configuration are subject to improvement with technological development, but will not be lower than current technical requirements. No separate notification will be given; the specific details shall be based on the technical agreement at the time of purchase.
Note ①: The 3-axis power and torque are based on FANUC. For detailed information on Mitsubishi, Syntec and other systems, please consult the corresponding account manager.
Note ②: In case of stock shortage, equivalent specifications (such as HIWIN, Rexroth, THK) will be used as substitutes. No separate notification will be given.
