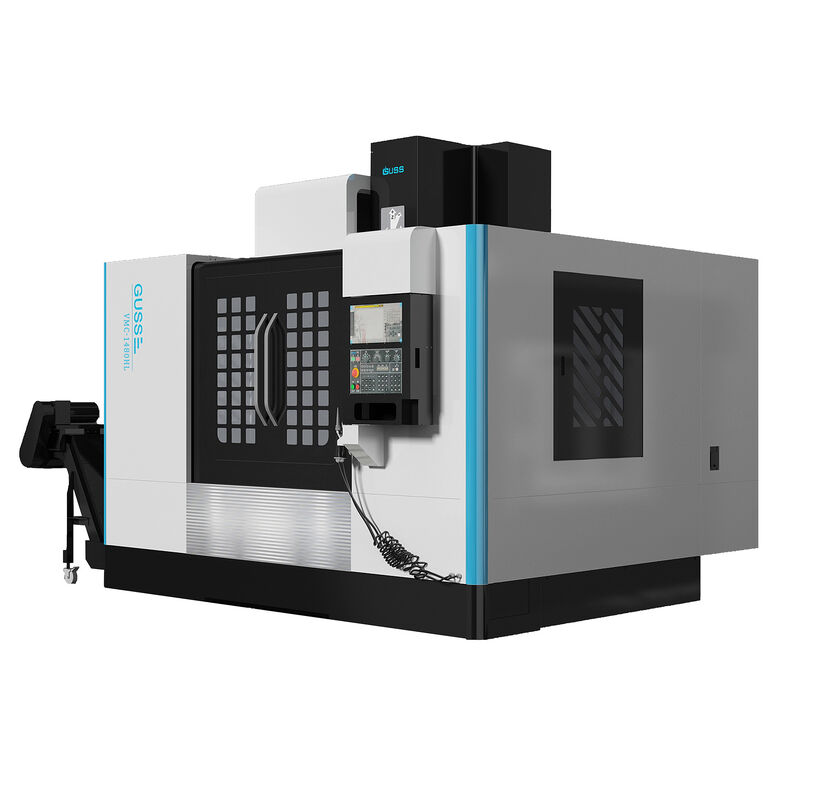

VMC-1480HL Industrial Vertical Machining Centers High Precision
| Place of Origin | China |
| Brand Name | Guss |
| Model Number | VMC-1480HL |
Industrial Vertical Machining Centers
,High Precision Vertical Machining Centers
,High Precision vmc cnc
Product Features
- Low-Center-of-Gravity Chassis Design for Maximum Stability
- Y-Direction Four-Guide-Rail Design Effectively Resists Heavy-Load Deformation
- Meticulous Design and Elaborate Assembly
- Perfect Combination of Stability, High Rigidity and Precision
Technical Specifications
| Item | Unit | VMC-1480HL | |
|---|---|---|---|
| System | CNC System | - | FANUC |
| Rapid Speed | mm/min | 20000/20000/20000 | |
| Cutting Feed Speed | mm/min | 1-10000 | |
| 3-Axis Rated Power | Kw | 3.0/3.0/3.0 [Note①] | |
| 3-Axis Rated Torque | N.m | 27.0/27.0/27.0 [Note①] | |
| Worktable | T-Slot Dimensions | - | 5-18-125 |
| Worktable Dimensions | mm | 1500*800 | |
| Max Worktable Load | Kg | 1300 | |
| Travel | 3-Axis Travel | mm | 1400*800*700 |
| Distance from Spindle Nose to Worktable | mm | 150-850 | |
| Spindle | Spindle Power | Kw | 15-18.5 |
| Max Spindle Speed | rpm | 6000(Belt)/8000(Belt)/10000(Direct Drive) | |
| Spindle Taper | - | BT50 | |
| Transmission | Screw Diameter/Pitch | mm | Φ50D10/Φ50D10/Φ50D10 |
| Linear Rail Brand/Type/Width | - | PMI Roller 45mm/Roller 45mm/Roller 45mm [Note②,③] | |
| Number of Rails/Sliders | Pcs | 2-6/4-8/2-6 | |
| Tool Magazine | Tool Magazine Capacity | Pcs | 24 [Note④] |
| BT/BBT Pull Stud Angle | ° | 45° | |
| Max Tool Diameter | mm | Φ110(Full Magazine)/Φ210(Empty Adjacent Tool) | |
| Max Tool Length/Weight | mm/kg | 350/15 | |
| Tool Change Time | s | 2.2 | |
| Partial Configuration | Automatic Chip Removal | - | Rear Flushing |
| Automatic Lubrication System | - | Thin Oil Lubrication | |
| Electrical Cabinet Cooling | - | Heat Exchanger | |
| Accuracy | Positioning Accuracy (Full Travel) | mm | 0.01 |
| Repeat Positioning Accuracy (Full Travel) | mm | 0.008 | |
| Others | Air Supply Flow/Pressure | - | Flow 150(L/min)/Pressure(6Bar) |
| Total Power | Kw | 35 | |
| Machine Weight | Kg | 11500 | |
| Machine Overall Dimensions (L*W*H) | mm | 3900*2900*3000 [Note⑤] | |
Mechanical manual tool magazine,Rear-flush chip removal,Spindle oil cooler,Water gun,Air gun,Spindle air curtain,Spindle ring spray,Centralized lubrication,Air source treatment,Oil-water separation,Heat exchanger,Nitrogen balance
Mitsubishi/Syntec system,Hollow screw,Chain-type chip removal,Grease lubrication,Electrical cabinet air conditioner,4-axis,5-axis,Column heightening,Tool internal,coolingFixtures,Clamps
※ The product appearance and configuration are subject to improvement with technological development, but will not be lower than current technical requirements. No separate notification will be given; the specific details shall be based on the technical agreement at the time of purchase.
Note ①: The 3-axis power and torque are based on FANUC. For detailed information on Mitsubishi, Syntec and other systems, please consult the corresponding account manager.
Note ②: In case of stock shortage, equivalent specifications (such as HIWIN, Rexroth, THK) will be used as substitutes. No separate notification will be given.
Note ③: The width of X/Y/Z-axis linear rails can be optionally 55mm.
Note ④: Optional 30-tool capacity for the tool magazine.
Note ⑤: This dimension does not include the water tank (the width of the rear-flush water tank increases by 550mm) or the chain (the length of the chain increases by 1000mm). Select one option based on the actual configuration.
