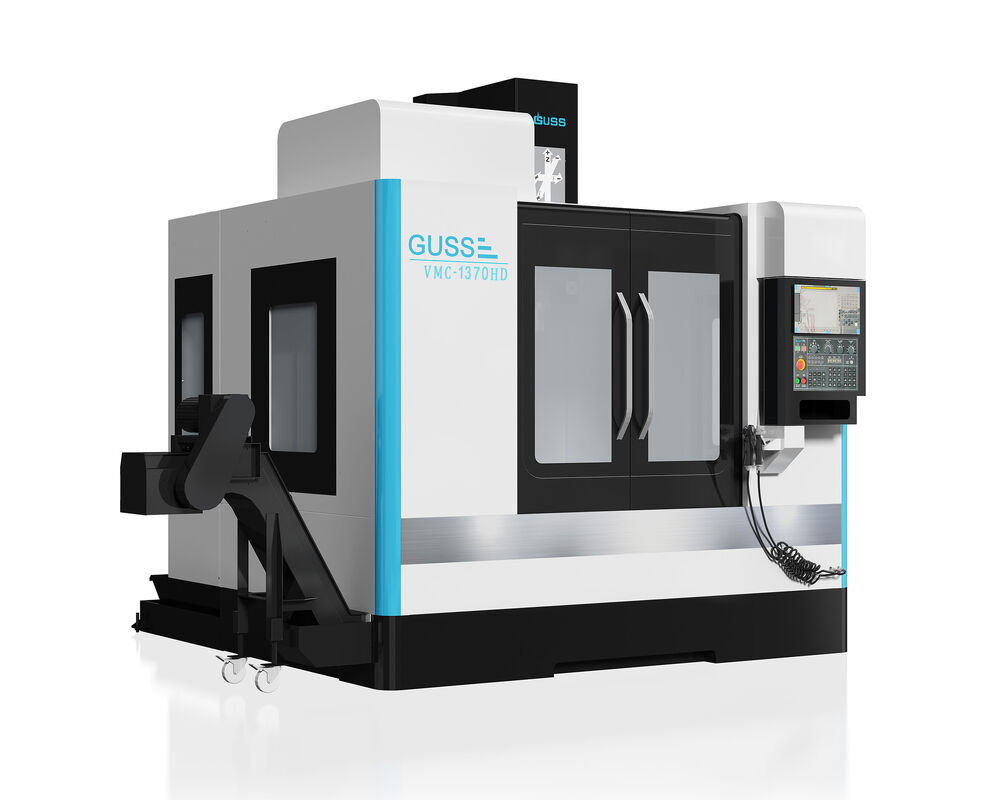

VMC-1370HD CNC Vertical Machining Center With Gear Spindle 3 Axis
| Place of Origin | China |
| Brand Name | Guss |
3 Axis cnc vertical machining center
,Gear Spindle cnc vertical machining center
,3 Axis high speed vertical machining centers
- Full-Tooth Spindle Design for Superior Machining Performance
- Low-Speed High Torque, High-Speed High Power
- Specially Optimized Base Design to Resist Vibration from Heavy Cutting
- All Full-Teeth Adopt Original Taiwan Brands, with High Precision, Low Wear and Low Noise
| Item | Unit | VMC-1370HD | |
|---|---|---|---|
| System | CNC System | - | FANUC |
| Rapid Speed | mm/min | 20000/20000/12000 | |
| Cutting Feed Speed | mm/min | 1-10000 | |
| 3-Axis Rated Power | Kw | 3.0/3.0/3.0 [Note①] | |
| 3-Axis Rated Torque | N.m | 27.0/27.0/27.0 [Note①] | |
| Worktable | T-Slot Dimensions | - | 5-18-150 |
| Worktable Dimensions | mm | 1400×700 | |
| Max Worktable Load | Kg | 1600 | |
| Travel | 3-Axis Travel | mm | 1300×700×700 |
| Distance from Spindle Nose to Worktable | mm | 120-820 | |
| Spindle | Spindle Power | Kw | 15-18.5 (Wide Range) |
| Spindle Rated Torque | N.m | 572(Low Speed Gear)/143(High Speed Gear) | |
| Spindle Gear Ratio | - | 1:4 / 1:1 | |
| Max Spindle Speed | rpm | 2500(1:4) / 8000(1:1) | |
| Spindle Taper | - | BT50 | |
| Transmission | Screw Diameter/Pitch | mm | Φ50D12/Φ50D12/Φ50D12 |
| Linear Rail Brand/Type/Width | - | PMI Roller 55mm/Roller 45mm/Rectangular rail [Note②] | |
| Number of Rails/Sliders | Pcs | 2-6/4-8 (Rectangular rail) | |
| Tool Magazine | Tool Magazine Capacity | Pcs | 24 [Note③] |
| BT/BBT Pull Stud Angle | ° | 45° | |
| Max Tool Diameter | mm | Φ110(Full Magazine)/Φ210(Empty Adjacent Tool) | |
| Max Tool Length/Weight | mm/kg | 350/15 | |
| Tool Change Time | s | 2.2 | |
| Partial Configuration | Automatic Chip Removal | - | Rear Flushing |
| Automatic Lubrication System | - | Thin Oil Lubrication | |
| Electrical Cabinet Cooling | - | Heat Exchanger | |
| Accuracy | Positioning Accuracy (Full Travel) | mm | 0.008 |
| Repeat Positioning Accuracy (Full Travel) | mm | 0.005 | |
| Others | Air Supply Flow/Pressure | - | Flow 150(L/min)/Pressure(6Bar) |
| Total Power | Kw | 35 | |
| Machine Weight | Kg | 10500 | |
| Machine Overall Dimensions (L×W×H) | mm | 4900×2950×2900 | |
Standard Configuration:
Mechanical manual tool magazine, chain-type chip removal, spindle oil cooler, water gun, air gun, spindle air curtain, spindle ring spray, centralized lubrication, air source treatment, oil-water separation, heat exchanger, nitrogen balance
Optional Configuration:
Mitsubishi/Syntec system, hollow screw, electrical cabinet air conditioner, 4-axis, 5-axis, column heightening, tool internal cooling, fixtures, clamps
※ The product appearance and configuration are subject to improvement with technological development, but will not be lower than current technical requirements. No separate notification will be given; the specific details shall be based on the technical agreement at the time of purchase.
Note ①: The 3-axis power and torque are based on FANUC. For detailed information on Mitsubishi, Syntec and other systems, please consult the corresponding account manager.
Note ②: In case of stock shortage, equivalent specifications (such as HIWIN, Rexroth, THK) will be used as substitutes. No separate notification will be given.
Note ③: Optional 30-tool capacity for the tool magazine.
