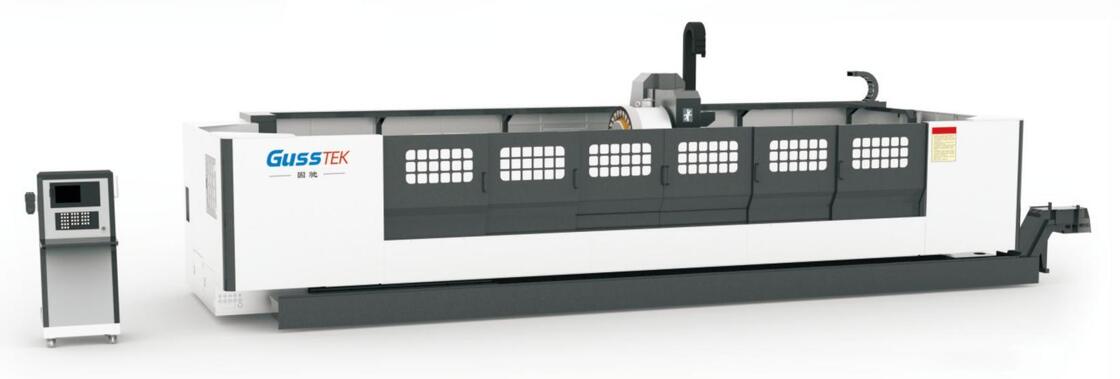

KBE-6500M/E 3 Axis Aluminum Profile Machining Center High Speed
|
KBE-6500M/E 3 Axis Aluminum Profile Machining Center High Speed
| Place of Origin | China |
| Brand Name | Guss |
Product Details
X-axis Travel (Left/Right):
4500mm
Y-axis Travel (Front/Back):
600mm
Z-axis Travel (Up/Down):
700mm
Worktable Size (L*W):
4500*600mm
Maximum Table Load:
3000kg/m²
T-slot Width:
18mm
Spindle Type:
Belt/Direct Drive
Highlight:
High Speed aluminum profile machining center
,3 Axis aluminum profile machining center
,High Speed aluminum machining center
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union, MoneyGram, T/T
Product Description
KBE-6500M/E 3 Axis Profile Machining Center
Functions and Features :
- The machine tool is suitable for high-speed and light cutting of aluminum industrial materials,including aluminum extrusion profiles, aluminum calendered plates, integrated die-casting aluminum, composite materials, carbon fiber and other special materials.
- The directly connected mechanical spindle and electric spindle with the circular tool magazine can continuously complete the milling, boring, drilling, tapping of the workpiece under one clamping.
- Equipment application industries include: aerospace, rail transit, new energy vehicles, medical & sports equipment, automation modules, photovoltaic & 5G equipment, etc.
| Item | Unit | KBE-6500M/E | |
| 3-Axis Effective Travel | X-axis Travel (Left/Right) | mm | 6500 |
| Y-axis Travel (Front/Back) | mm | 600 | |
| Z-axis Travel (Up/Down) | mm | 700 | |
| Distance from Spindle Nose to Table Surface | mm | 150-850 | |
| Worktable | Worktable Size (L×W) | mm | 6500×600 |
| Maximum Table Load | kg/m² | 2000 | |
| T-slot Width | mm | 18 | |
| Mechanical Spindle & Electric Spindle | Spindle Type | rpm | Direct-Connection/Direct-Drive Motor |
| Maximum Speed | rpm | 12000/20000 | |
| Spindle Diameter | mm | 150 | |
| Tool Holder Specification | BT40/HSK-A63 | ||
| Feed System | Rapid traverse speed(X/Y/Z) | m/min | Rack 60/30/30 |
| Cutting Feed Rate | m/min | 1～15 | |
| Mechanical Accuracy | X-axis Positioning Accuracy | mm | 0.05/Full Stroke |
| Y/Z-axis Positioning Accuracy | mm | 0.02/Full Stroke | |
| Repeat Positioning Accuracy (X/Y/Z) | mm | X:±0.01/500; Y/Z:±0.01/300 | |
| Tool Magazine Configuration Specifications | Tool Magazine Type | # | Disc Type |
| Number of Tools | T | 24 | |
| Lubrication System | Automatic Grease Lubrication System | set | 1 |
| Cooling System | Cutting Fluid Cooling | set | 1 |
| Chip Removal Device | Chain Plate Chip Conveyor | set | 1 |
| Others | Machine Dimensions (L×W×H) | mm | 10110*3220*3100 |
| Machine Weight | t | Approx. 14 | |
