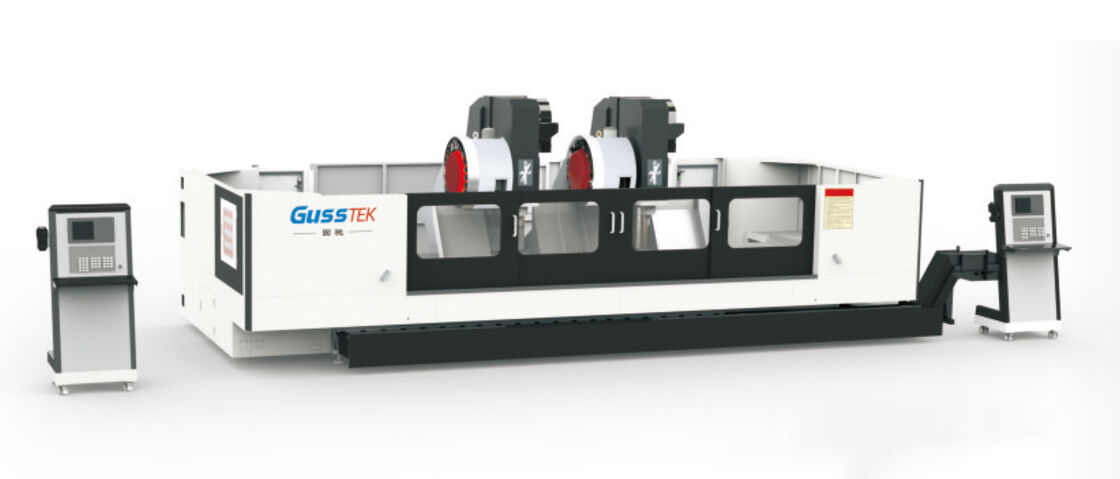

KBE-4500MD/ED 3 Axis Double Head Aluminium Profile Machining Center
|
KBE-4500MD/ED 3 Axis Double Head Aluminium Profile Machining Center
| Place of Origin | China |
| Brand Name | Guss |
Product Details
X-axis Travel (Left/Right):
4500mm
Y-axis Travel (Front/Back):
600mm
Z-axis Travel (Up/Down):
700mm
Worktable Size (L*W):
4500*600mm
Maximum Table Load:
3000kg/m²
T-slot Width:
18mm
Spindle Type:
Belt/Direct Drive
Highlight:
Double Head Aluminium Profile Machining Center
,3 Axis Aluminium Profile Machining Center
,3 Axis aluminium profile cnc machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union, MoneyGram, T/T
Product Description
KBE-4500MD/ED 3 Axis Double Head Profile Machining Center
Functions and Features :
- The machine tool is suitable for high-speed and heavy cutting processing of aluminum industrial materials, including aluminum extrusion profiles, aluminum rolled plates, integral die-cast aluminum, copper plates, aluminum-magnesium alloys, titanium alloys, composite materials, carbon fibers and other special materials with high-speed and high-gloss processing.
- The direct connection of the mechanical spindle and the electric spindle, combined with the disc tool magazine, enables the continuous completion of milling, boring, drilling, tapping and sawing of the workpiece in one clamping.
- The application industries of the equipment include: aerospace, rail transportation, new energy vehicles, medical & sports equipment, automation modules, photovoltaic & 5G equipment, etc.
- The machine can achieve left-right partition processing in two workstations and the production mode of no machine stop for loading and unloading.
| Item | Unit | KBE-4500MD/ED | |
|---|---|---|---|
| 3-Axis Effective Travel | X-axis Travel (Left/Right) | mm | Max single-axis stroke: 3434 Min dual-axis distance: 1118 |
| Y-axis Travel (Front/Back) | mm | 600 | |
| Z-axis Travel (Up/Down) | mm | 700 | |
| Distance from Spindle Nose to Table Surface | mm | 150-850 | |
| Worktable | Worktable Size (L×W) | mm | 4500×600 |
| Maximum Table Load | kg/m² | 2000 | |
| T-slot Width | mm | 18 | |
| Mechanical Spindle & Electric Spindle | Spindle Type | rpm | Direct-Connection/Direct-Drive Motor |
| Maximum Speed | rpm | 12000/20000 | |
| Spindle Diameter | mm | 150 | |
| Tool Holder Specification | # | BT40/HSK-A63 | |
| Feed System | Max Rapid Traverse (X/Y/Z) | m/min | Rack 60/30/30 |
| Cutting Feed Rate | m/min | 1～15 | |
| Mechanical Accuracy | X-axis Positioning Accuracy | mm | 0.05/Full Stroke |
| Y/Z-axis Positioning Accuracy | mm | 0.02/Full Stroke | |
| Repeat Positioning Accuracy (X/Y/Z) | mm | X:±0.01/500; Y/Z:±0.01/300 | |
| Tool Magazine Configuration Specifications | Tool Magazine Type | # | Disc Type |
| Number of Tools | T | 24 | |
| Lubrication System | Automatic Grease Lubrication System | set | 1 |
| Cooling System | Cutting Fluid Cooling | set | 1 |
| Chip Removal Device | Chain Plate Chip Conveyor | set | 1 |
| Others | Machine Dimensions (L×W×H) | mm | 8110*3220*3100 |
| Machine Weight | t | Approx. 15 | |
