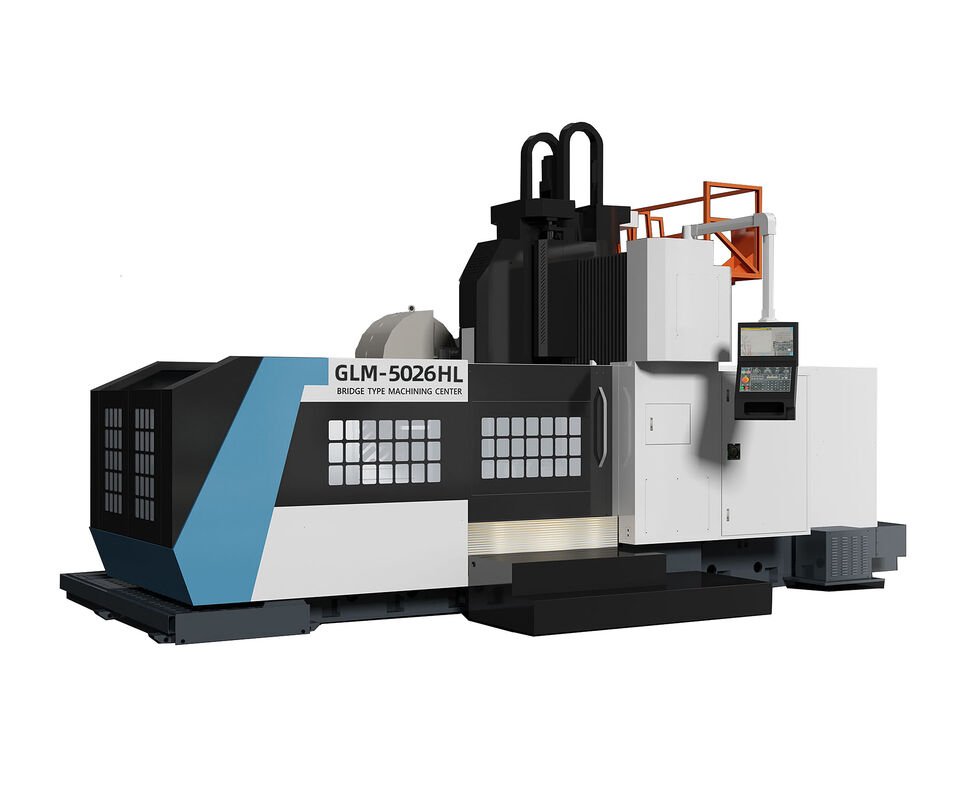

GLM-5026HL Gantry Machining Centers High Precision Industrial
| Place of Origin | China |
| Brand Name | Guss |
| Model Number | GLM-5026HL |
Industrial gantry machining centers
,High Precision Gantry Machining Centers
,Industrial cnc gantry machine
- Reinforced Design with Stable Structure
- Upper-Mounted Beam Guideway for Enhanced Toughness
- Long-Lasting Performance with Reliable Machining Quality
| Item | Unit | GLM-5026HL | |
|---|---|---|---|
| System | Control System | - | FANUC |
| Rapid Traverse Speed | mm/min | 12000/12000/12000 | |
| Cutting Feed Speed | mm/min | 1-10000 | |
| 3-Axis Rated Power | Kw | 6.0/7.0/7.0 [Note①] | |
| 3-Axis Rated Torque | N.m | 38.0/30.0/30.0 [Note①] | |
| Worktable | T-Slot Size | - | 9-28-220 |
| Worktable Size | mm | 5000*2200 | |
| Doorway Width | mm | 2600 | |
| Max Worktable Load | Kg | 18000 | |
| Stroke | 3-Axis Stroke | mm | 5000*2600*1000 |
| Spindle Nose to Worktable Distance | mm | 200-1200 | |
| Spindle | Spindle Power | Kw | 22-26 |
| Max Spindle Speed | rpm | 6000 | |
| Spindle Taper Hole | - | BT50 | |
| Transmission | Screw Diameter/Pitch | mm | Φ80D16/Φ63D12/Φ50D10 |
| Linear Rail Brand/Type/Width | - | PMI Roller 55mm/55mm(Hard Rail) [Note②] | |
| Guide Rail Qty/Slider Qty | Pcs | 2-14/2-4 (Hard Rail) | |
| Tool Magazine | Tool Capacity | Pcs | 24 [Note③] |
| BT/BT8T Drawbar Angle | ° | 45° | |
| Max Tool Diameter | mm | Φ110 (Full Load)/Φ210 (Empty Adjacent Tool) | |
| Max Tool Length/Weight | mm/kg | 350/15 | |
| Tool Change Time | s | 2.2 | |
| Partial Configuration | Auto Chip Removal | - | Double Screw + Chain Type |
| Auto Lubrication System | - | Thin Oil Lubrication | |
| Cabinet Cooling | - | Heat Exchanger | |
| Accuracy | Positioning Accuracy (300mm) | mm | 0.008/0.008/0.012 |
| Repeat Positioning Accuracy (300mm) | mm | 0.006/0.006/0.008 | |
| Others | Air Flow/Pressure | - | Flow 150(L/min)/Pressure 6(Bar) |
| Total Power | Kw | 40 | |
| Machine Weight | Kg | 49800 | |
| Machine Overall Size (L*W*H) | mm | 14800*4800*5500 | |
Mechanical Tool Magazine, Double Screw + Chain-Type Chip Removal, Spindle Oil Cooler, Water Gun, Air Gun, Spindle Shroud, Spindle Ring, Centralized Lubrication, Air Source Treatment, Oil-Water Separator, Heat Exchanger, Counterbalance Cylinder
Mitsubishi/New Generation System, Hollow Screw, Cabinet Air Conditioner, 4-Axis/5-Axis, Column Reinforcement, Full Enclosure, Manual/Auto Rotary Head, Side Head Magazine, Internal Tool Cooling, Fixtures, Clamps
Product appearance and configuration are subject to technical updates (not lower than current specifications), without prior notice. The actual purchase technical agreement shall prevail.
There are many gantry machine models; the above is only part of our company’s models. For unlisted specifications, please consult the official website or the corresponding customer manager.
Note①:3-axis power/torque is based on FANUC. For details of Mitsubishi/New Generation systems, please consult the corresponding customer manager.
Note②:For guide rails, HWIN/Rexroth/THK (same specifications) may be substituted, without prior notice.
Note③:Tool magazine capacity can be optionally 30T.
