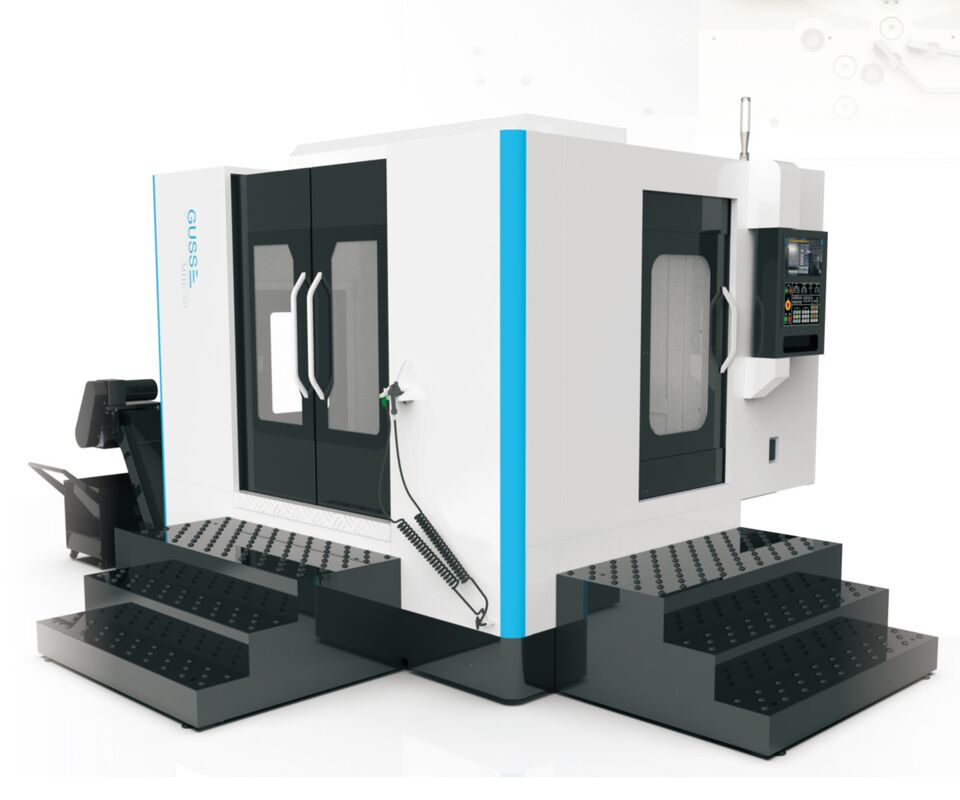

MHE-50 Horizontal Machining Centers High Precision High Responsiveness High Speed
| Place of Origin | China |
| Brand Name | Guss |
| Model Number | MHE-50 |
High Responsiveness Horizontal Machining Centers
,High Precision Horizontal Machining Centers
,High Speed cnc horizontal machining
- High Responsiveness, High Speed
- Economical, Durable, High Cost-Effectiveness
- High Precision, Stable, Low Failure Rate
- Wide Application Range, High Processing Efficiency
| Item | Unit | MHE-50 | |
|---|---|---|---|
| System | CNC System | - | FANUC |
| Rapid Traverse Speed | - | 24000/24000/24000 | |
| Cutting Feed Speed | mm/min | 1-10000 | |
| 3-Axis Rated Power | Kw | 3.0/3.0/3.0 [Note①] | |
| 3-Axis Rated Torque | N.m | 22.0/22.0/22.0 [Note①] | |
| Worktable | T-Slot Size/Threaded Hole Specification | - | 5-18-100/M16×20 Thread |
| Worktable Size | mm | 500×500 | |
| Worktable Indexing | ° | 1[Note②] | |
| Worktable Speed | r/min | 25 | |
| Max Worktable Rotation Diameter | mm | 800 | |
| Max Worktable Load | Kg | 400 | |
| Stroke | 3-Axis Stroke | mm | 800×550×550 |
| Distance from Spindle Center to Worktable Surface | mm | 0-550 | |
| Distance from Spindle Nose to Worktable Center | mm | 120-670 | |
| Spindle | Spindle Power | Kw | 11-15 |
| Max Spindle Speed | rpm | 10000(Belt)/12000(Direct Drive) | |
| Spindle Taper Hole | - | BT40 [Note③] | |
| Transmission | Screw Diameter/Pitch | mm | Φ40D12/Φ40D12/Φ40D12 |
| Linear Rail Brand/Type/Width | - | PMI Roller 45mm/45mm/45mm [Note④] | |
| Guide Rail Qty/Slider Qty | Pcs | 2-4/2-6/2-6 | |
| Tool Magazine | Tool Capacity | Pcs | 24 |
| BT/BBT Tightening Angle | ° | 45° | |
| Max Tool Diameter | mm | Φ80(Full)/Φ150(Empty Adjacent Tool) | |
| Max Tool Length/Weight | mm/Kg | 300/8 | |
| Tool Change Time | s | 1.3 | |
| Partial Configuration | Automatic Chip Removal | - | Chain Conveyor |
| Automatic Lubrication System | - | Thin Oil Lubrication | |
| Cabinet Cooling | - | Heat Exchanger | |
| Accuracy | Positioning Accuracy (Full Stroke) | - | 0.008mm/0.008mm/0.008mm/10sec |
| Repeat Positioning Accuracy (Full Stroke) | - | 0.005mm/0.005mm/0.005mm/2sec | |
| Others | Air Flow/Pressure | - | Flow 150L(min)/Pressure(6bar) |
| Total Power | Kw | 25 | |
| Machine Weight | Kg | 7500 | |
| Machine Overall Size (L×W×H) | mm | 2400×2400×2600 | |
Mechanical tool magazine, rear water chip conveyor, spindle oil cooler, water gun, air gun, spindle curtain, spindle ring, centralized lubrication, air treatment, oil-water separator, heat exchanger
Mitsubishi/Sinumerik system, hollow spindle, chain chip conveyor, grease lubrication, electrical cabinet air conditioning, 4th/5th axis, column heightening, internal tool cooling, fixtures, clamps
※ Product appearance and configuration are subject to improvement with technological development (not lower than current technical requirements), and no separate notification will be given. The actual purchase shall be subject to the technical agreement.
Note①: 3-axis power and torque are based on FANUC; for details of Mitsubishi/Sinumerik systems, please consult the supplier's customer manager.
Note②: Optional 0.01° indexing table.
Note③: Optional T50 spindle.
Note④: If out of stock, HIWIN/Rexroth/THK of the same specification will be used as substitutes, and no separate notification will be given.
