GLM-4016HL High Precision Heavy Duty Gantry Machining Center with 4200mm Stroke for Industrial Applications
| Place of Origin | China |
| Brand Name | Guss |
| Model Number | GLM-4016HL |
GLM-4016HL gantry machining center
,high precision gantry machining center
,heavy duty gantry machining center

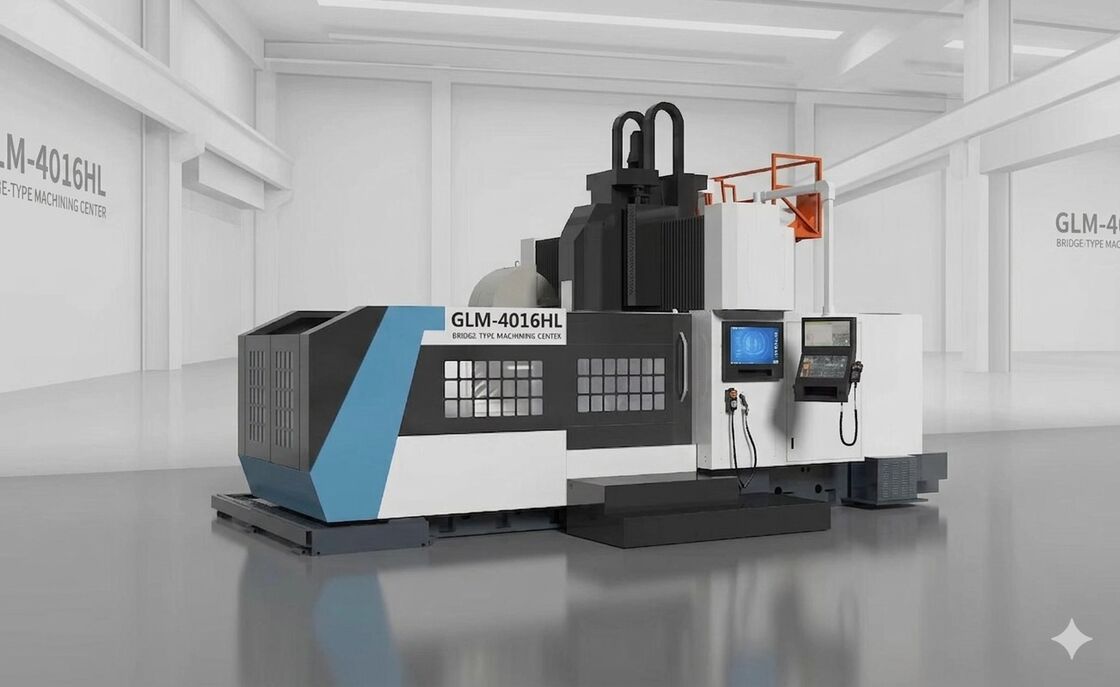

GLM-4016HL Gantry Machining Center
- Widened Base, Lowered Center of Gravity
- Y-Axis Rail Top-Mounted, Stable Structure
- Z-Axis Four-Guide-Rail Design, Stronger Toughness
| Item | Unit | GLM-4016HL |
|---|---|---|
| System | Control System | FANUC |
| Rapid Traverse Speed | mm/min | 12000/12000/12000 |
| Cutting Feed Speed | mm/min | 1-10000 |
| 3-Axis Rated Power | Kw | 6.0/7.0/7.0 [Note①] |
| 3-Axis Rated Torque | N.m | 38.0/30.0/30.0 [Note①] |
| Worktable | T-Slot Specs | 9-28-180 |
| Worktable Size | mm | 4200*1400 |
| Doorway Width | mm | 1600 |
| Max Worktable Load | Kg | 5500 |
| Stroke | 3-Axis Stroke | 4200*1600*800 |
| Spindle Nose to Worktable Distance | mm | 1250-950 |
| Spindle | Spindle Power | 15-18.5 |
| Max Spindle Speed | rpm | 6000 (Belt)/8000 (Belt)/10000 (Direct Drive) |
| Spindle Taper Hole | - | BT50 |
| Transmission | Screw Diameter/Pitch | Φ80D16/Φ63D16/Φ50D10 |
| Linear Rail Brand/Type/Width | - | PMI Roller 55mm/55mm (Rectangular rail) [Note②] |
| Guide Rail Qty/Slider Qty | Pcs | 2-16/2-5 (Rack) |
| Tool Magazine | Tool Capacity | 24 [Note④] |
| Drawbar Angle | ° | 45° |
| Max Tool Diameter | mm | Φ110 (Full)/Φ210 (Empty Adjacent Tool) |
| Max Tool Length/Weight | mm/kg | 350/15 |
| Tool Change Time | s | 2.2 |
| Configuration | Auto Chip Removal | Rear Flush |
| Auto Lubrication System | - | Thin Oil Lubrication |
| Cabinet Cooling | - | Heat Exchanger |
| Accuracy | Positioning Accuracy (300mm) | 0.008/0.008/0.012 |
| Repeat Positioning Accuracy (300mm) | mm | 0.006/0.006/0.008 |
| Others | Air Flow/Pressure | Flow 150(L/min)/Pressure 6(bar) |
| Total Power | Kw | 30 |
| Machine Weight | Kg | 23000 |
| Machine Overall Size (L*W*H) | mm | 9700*3470*3500 |
- Double-row + Chain-type Tool Magazine
- Spindle Oil Cooler
- Water Gun
- Air Gun
- Spindle Shroud
- Spindle Ring
- Centralized Lubrication
- Air Source Treatment
- Oil-Water Separator
- Heat Exchanger
- Counterbalance Cylinder
- Mitsubishi/New Generation System
- Hollow Spindle
- Cabinet Air Conditioner
- 4-Axis/5-Axis
- Column Reinforcement
- Full Enclosure
- Manual/Auto Rotary Head
- Side Head Magazine
- Internal Tool Cooling
- Fixtures
- Clamps
Remarks:
Product appearance and configuration are subject to technical updates (not lower than current specifications), without prior notice. The actual purchase technical agreement shall prevail.
There are many gantry machine models; the above is only part of our company's models. For unlisted specifications, please consult the official website or the corresponding customer manager.
Note①: 3-axis power/torque is based on FANUC. For details of Mitsubishi/New Generation systems, please consult the corresponding customer manager.
Note②: For guide rails, HWIN/Rexroth/THK (same specifications) may be substituted, without prior notice.
Note③: Z-axis can be optionally motorized.
Note④: Tool magazine capacity can be optionally 30T.
-
