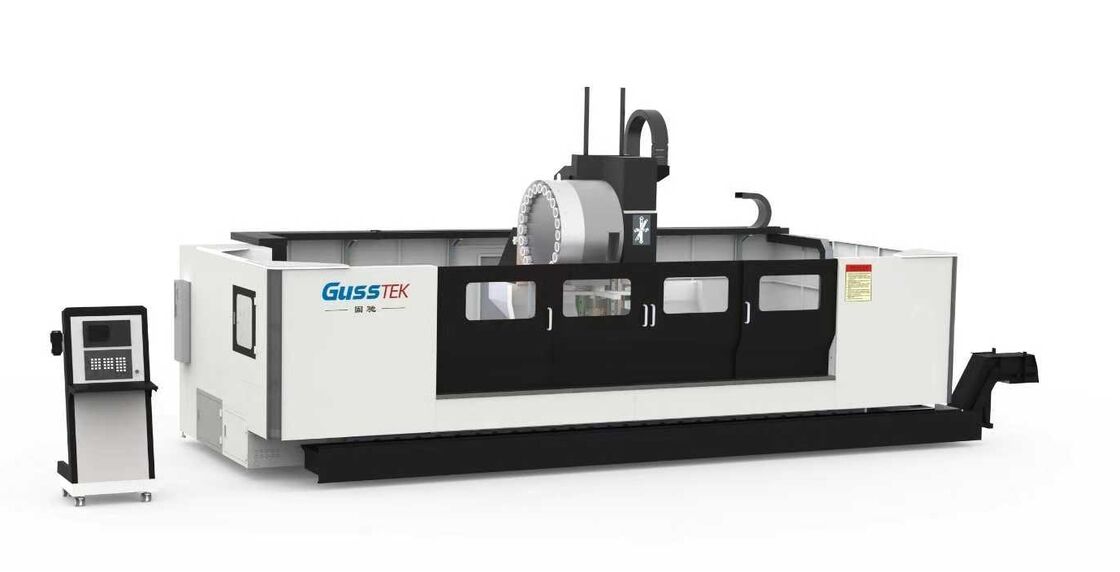

KAE-4500B/M 3 Axis Steel Profile Machining Center Logistics Equipment Metal Equipment
|
KAE-4500B/M 3 Axis Steel Profile Machining Center Logistics Equipment Metal Equipment
| Place of Origin | China |
| Brand Name | Guss |
Product Details
X-axis Travel (Left/Right):
4500mm
Y-axis Travel (Front/Back):
600mm
Z-axis Travel (Up/Down):
700mm
Worktable Size (L*W):
4500*600mm
Maximum Table Load:
3000kg/m²
T-slot Width:
18mm
Spindle Type:
Belt/Direct Drive
Highlight:
Steel Profile Machining Center 3 Axis
,Logistics Equipment Steel Profile Machining Center
,Metal Equipment profile machining center
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
Different packaging methods are adopted according to different modes of transport.
Payment Terms
Western Union, MoneyGram, T/T
Product Description
Functions and Features :
- The machine is suitable for light cutting of metal industrial steel, including die steel, metal shaft, profile steel, riveted steel, stainless steel and other metal steel.
- Belt & direct connection mechanical spindle with the disk tool magazine can continuously complete the milling, boring, drilling, tapping and sawing of the workpiece under one clamping.
- Equipment application industries include: machining, rail transit, logistics equipment, three dimensional parking lot, metal equipment, textile & laser & woodworking equipment, etc.
- The machine can realize the two- station partition processing, and the production mode of loading and unloading without stopping the machine.
| Item | Unit | KAE-4500B/M | |
|---|---|---|---|
| 3-Axis Effective Travel | X-axis Travel (Left/Right) | mm | 4500 |
| Y-axis Travel (Front/Back) | mm | 600 | |
| Z-axis Travel (Up/Down) | mm | 700 | |
| Distance from Spindle Nose to Table Surface | mm | 150-950 | |
| Worktable | Worktable Size (L×W) | mm | 4500×600 |
| Maximum Table Load | kg/m² | 2000 | |
| T-slot Width | mm | 18 | |
| Mechanical Spindle | Spindle Type | rpm | Belt/Direct Drive |
| Maximum Speed | rpm | 8000/10000 | |
| Spindle Diameter | mm | 150/155 | |
| Tool Holder Specification | # | BT40/BT50 | |
| Feed System | Max Rapid Traverse (X/Y/Z) | m/min | Rack:40/20/20 |
| Cutting Feed Rate | m/min | 1～15 | |
| Mechanical Accuracy | X-axis Positioning Accuracy | mm | 0.05(Full Stroke) |
| Y/Z-axis Positioning Accuracy | mm | 0.02(Full Stroke) | |
| Repeat Positioning Accuracy (X/Y/Z) | mm | X:±0.01/500; Y/Z:±0.01/300 | |
| Tool Magazine Configuration Specifications | Tool Magazine Type | # | Disc-type |
| Number of Tools | T | 24 | |
| Lubrication System | Automatic Grease Lubrication System | set | 1 |
| Cooling System | Cutting Fluid Cooling | set | 1 |
| Chip Removal Device | Chain Plate Chip Conveyor | set | 1 |
| Others | Machine Dimensions (L×W×H) | mm | 8144*3295*3140 |
| Machine Weight | t | Approx. 15 | |
