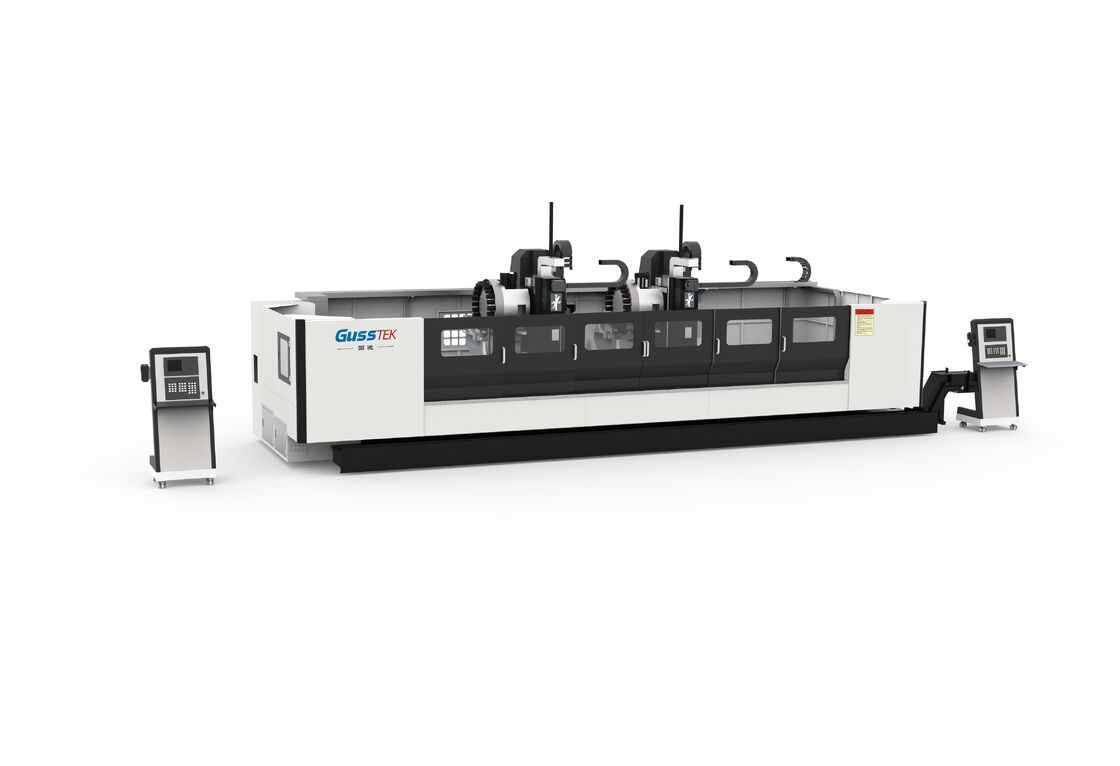

KBE-6500MTD Double-Head CNC profile machining center
| Place of Origin | JIANGSU |
| Brand Name | GUSS |
| Certification | CE |
| Model Number | KBE-6500MTD |
Product Details
X-axis Travel:
Maximum Travel Of Single Axis: 5235 Mm, Minimum Distance Between Dual Axes: 1318 Mm
Y-axis Travel:
550mm
Z-Axis Travel:
700mm
B-axis:
±90°
Distance From Spindle Nose To Table Surface:
150-850mm
Worktable:
6500*600mm
Highlight:
Double-Head CNC machining center
,Profile machining center with warranty
,CNC profile machining center KBE-6500MTD
Payment & Shipping Terms
Minimum Order Quantity
1
Price
TO BE NEGOTIATED
Delivery Time
30-60 DAYS
Payment Terms
T/T
Supply Ability
10 PCS/MONTH
Product Description
KBE-6500MTD Double-Head CNC Profile Machining Center
Technical Features
- Dual oscillating heads for synchronous or independent machining with two independently controlled milling units
- Flexible oscillating axis for multi-angle cutting with A/C or B-axis swing motion
- Long X-axis travel up to 6500 mm for processing elongated workpieces
- High-rigidity moving column structure for stable precision during high-speed cutting
- High-speed direct-drive motorized spindle for excellent surface finish
- Efficient dual-station fixture system with pneumatic or hydraulic operation
- High positioning accuracy and repeatability with precision linear guides and ball screws
- Advanced CNC system support for FANUC and SIEMENS systems
- Full protection with optimized chip removal system
- Multi-process combined machining including milling, drilling, tapping, and chamfering
Technical Parameters
| Parameter | Unit | Specification |
|---|---|---|
| X-axis Travel (Left/Right) | mm | Max single-axis stroke 5235; Min dual-axis distance 1318 |
| Y-axis Travel (Front/Back) | mm | 550 |
| Z-axis Travel (Up/Down) | mm | 700 |
| Distance from Spindle Nose to Table Surface | mm | 150-850 |
| Worktable Size (L*W) | mm | 6500*600 |
| Maximum Table Load | kg/m² | 1000 |
| T-slot Width | mm | 18 |
| Spindle Type | rpm | Direct-Connection/Direct-Drive Motor |
| Maximum Speed | rpm | 12000/20000 |
| Spindle Diameter | mm | 150 |
| Tool Holder Specification | # | BT40/HSK-A63 |
| B-axis Max Tilt Angle | ° | ±45°/±90° |
| Max Rapid Traverse (X/Y/Z) | m/min | Rack 60/30/30 |
| Cutting Feed Rate | m/min | 1～15 |
| X-axis Positioning Accuracy | mm | 0.05/Full Stroke |
| Y/Z-axis Positioning Accuracy | mm | 0.02/Full Stroke |
| Repeat Positioning Accuracy (X/Y/Z) | mm | X:±0.01/500; Y/Z:±0.01/300 |
| Tool Magazine Type | # | Disc Type |
| Number of Tools | T | 24 |
| Machine Dimensions (L*W*H) | mm | 10110*3220*3100 |
| Machine Weight | t | Approx. 17.5 |
Applications
- Curtain wall aluminum profiles, window and door profiles
- Photovoltaic solar frames and brackets
- Automotive aluminum profiles and structural parts
- Rail transit vehicle profiles
- Industrial aluminum alloy structural components
- Heat dissipation profiles, decorative profiles
- Long profile milling, drilling, tapping, chamfering and multi-angle machining
Frequently Asked Questions
What is the brand and model of the Profile Machining Center?
The Profile Machining Center is manufactured by GUSS, and the model number is Profile Machining Center.
Where is the Profile Machining Center made?
The Profile Machining Center is made in Jiangsu, China.
What certifications does the Profile Machining Center have?
The Profile Machining Center is CE certified, ensuring it meets European safety and quality standards.
What is the minimum order quantity and price for the Profile Machining Center?
The minimum order quantity is 1 unit, and the price is to be negotiated based on order specifications.
What are the delivery time and payment terms for ordering the Profile Machining Center?
The delivery time ranges from 30 to 60 days, and the payment terms are typically T/T (Telegraphic Transfer).
